If your air conditioner is jammed into a tight space, the main risk is hot-air recirculation: the unit re-breathing its own exhaust, losing efficiency and struggling on hot days. The good news is you usually have several fixes that cost far less than relocating, from clearing obstructions to redirecting the exhaust air away from nearby walls and fences.

Cramped outdoor units are the norm in Australian homes. Side passages, courtyards, balconies and built-out backyards leave installers with one awkward spot, and that spot is often hard against a fence or wall. This guide rounds up the realistic fixes, with a pros and cons table so you can pick what suits your setup and budget.

Why a Tight Spot Hurts

A cramped unit cannot breathe. It needs cool air in and a clear path for hot air out, and a tight enclosure starves it of both. The result is hot-air recirculation, where exhaust bounces off nearby surfaces back into the intake.

That drives intake air temperature up and efficiency down. Research on split systems found that halving lateral clearance (400mm to 200mm) raised intake temperature by about 5.1 degrees and cut the energy efficiency ratio by roughly 16.9%. In badly ventilated spots, overall performance can fall by more than 50%, usually on the very hottest days when you need cooling most. A tight spot also stresses the compressor, shortening its life and inviting high-pressure faults.

The Fixes, Compared

There is rarely one right answer. The best fix depends on what is crowding your unit (a fence, a wall, a lid, plants, an enclosure) and how much you want to spend. Here is how the main options stack up.

Fix What it involves Pros Cons
Clear obstructions Trim plants, remove stored items, take off any lid or shelf Free, immediate, no downside Only helps if clutter is the issue
Open up screens/enclosures Swap solid screens for widely slatted ones, or remove boxes Restores airflow, keeps tidy look Some cost; needs the right slatted design
Redirect exhaust air Fit a deflector to aim hot air up or sideways past obstructions Cheap, DIY, no relocation, removable Best for discharge-side obstructions
Shade the unit (done right) Add a high, open shade above with big clearance Cuts solar heat load Useless or harmful if it traps exhaust
Raise or reposition Use brackets or shift the unit slightly Can free the discharge path Some cost; limited by available space
Relocate the unit Move it and re-run refrigerant lines Solves the root cause fully Expensive, disruptive, licensed work

1. Clear obstructions first

Always start here because it is free. Trim back any plants growing into the unit, remove bins, pots and stored items, and take off anything capping it from above. Many tight-spot problems are really clutter problems.

2. Open up screens and enclosures

If the unit is hidden inside a solid screen or box for looks, that is likely choking it. Replace solid panels with widely slatted designs that leave large gaps, or remove the enclosure. Never seal an outdoor unit in a closed cupboard.

3. Redirect the exhaust air

If a fence or wall sits close to the fan discharge and cannot move, redirect the hot air so it clears the obstruction instead of bouncing back. This tackles recirculation at the source and is one of the cheapest, least disruptive fixes available.

4. Shade it, but do it right

Shading the unit from direct sun can reduce its heat load. The Australian Government's YourHome guidance recommends keeping the outdoor compressor shaded from direct sun while keeping the area above it clear for airflow. The catch: a low or solid cover that traps exhaust does more harm than good. Any shade must sit high and open, never capping the unit.

5. Raise, reposition or relocate

Brackets or a small shift can sometimes free the discharge path. Full relocation solves the root cause but is the most expensive and disruptive option, since it needs new mounting and licensed refrigerant work. Treat it as a last resort once cheaper fixes are ruled out.

How the Aussie Air Bender helps

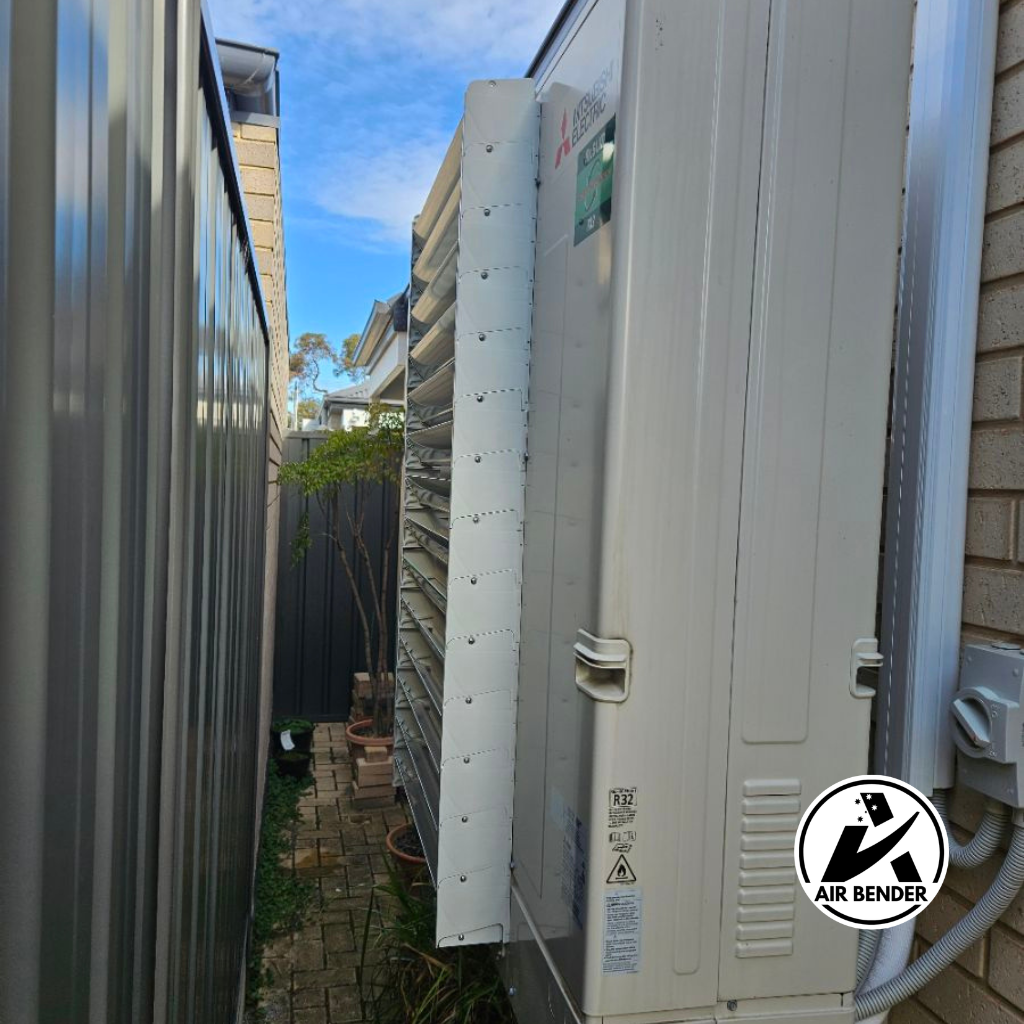

For a cramped unit boxed in by a fence, wall or balcony, redirecting the exhaust is often the smartest first move, and that is exactly what the Aussie Air Bender does.

It is a patented (Patent 2024333298), Australian-made magnetic air deflector. It attaches to the metal body of your condenser with magnets (no drilling, no tools) and redirects the discharge air upward or sideways at 45 degrees, so hot air clears the obstruction instead of recirculating. In a tight side passage or courtyard, that can be the difference between a unit that copes and one that gives up at 40 degrees.

  • No drilling, DIY install in minutes, easily removable and reusable.
  • Four sizes (Small, Medium, Large, XL); twin-fan units need two deflectors.
  • Designed and made in Adelaide, South Australia.

It pairs well with the other fixes: clear the clutter, open up any enclosure, then redirect the air.

Frequently asked questions

Is it bad to have an air conditioner in a tight space?

It can be, because tight spaces cause hot-air recirculation, which lowers efficiency and performance, especially in heat. The good news is most tight-spot problems can be improved with clearing, opening up enclosures, or redirecting the exhaust air.

What is the cheapest fix for a cramped outdoor unit?

Clearing obstructions is free and should be done first. After that, redirecting the exhaust air with a deflector is usually the cheapest effective fix, far less than relocating the unit.

Can I build a screen or box around my outdoor unit?

Only if it is widely slatted and leaves generous airflow on every side, with the top open. A solid box or closed cupboard traps exhaust and worsens recirculation, so avoid sealed enclosures.

Does shading the unit help or hurt?

Done right it helps, by reducing solar heat load. YourHome recommends shading the compressor from direct sun while keeping the area above it clear. A low or solid cover that traps hot air will hurt, so any shade must be high and open.
