An air conditioner air deflector is a simple attachment that fits over the outdoor unit's fan and redirects the hot exhaust air, usually upward or sideways at around 45 degrees, instead of letting it blow straight into a fence, wall, plant or seating area. And yes, when the unit is boxed in or pointed at an obstruction, a deflector can genuinely help, because the physics of hot-air recirculation are well understood.

This is the definitive guide to air deflectors for split-system and ducted reverse-cycle air conditioners. We cover what they are, exactly how they work, the problems they solve, the evidence behind them, who actually needs one, and what to look for when you buy. If you only read one article on the topic, make it this one.

What is an air conditioner air deflector?

An air deflector is an attachment for the outdoor unit (the condenser) that changes the direction of the air leaving the fan. Instead of the hot discharge air shooting straight out horizontally, the deflector turns it up or to the side so it clears nearby obstructions.

Outdoor units expel a large volume of hot air through the fan on the front (or top) of the unit. In an open backyard that is no problem. The trouble starts when that airstream hits something close by, or when it blows across a space you want to use. A deflector is the small, fixed piece of hardware that solves both.

Deflectors come in a few forms:

  • Magnetic deflectors that clip onto the metal unit with no drilling and lift off again for servicing
  • Bracket or screw-fixed deflectors that bolt onto the unit
  • Various materials, commonly galvanised or stainless steel, and engineered plastics

The principle is the same across all of them: take the hot exhaust air and aim it somewhere useful.

How does an air deflector work?

A deflector works by intercepting the discharge airstream and turning it, typically up and away at about a 45 degree angle. Lifting the hot air upward matters because warm air is buoyant and naturally wants to rise, so once it is pointed up it keeps going up and disperses, rather than circling back to the unit.

Here is the chain of events without a deflector on a boxed-in unit:

  1. The fan pushes hot air horizontally toward a nearby fence or wall.
  2. The air hits the solid surface and bounces back toward the unit.
  3. The unit's intake draws that hot air back in instead of cooler ambient air.
  4. The condenser is now trying to dump heat into air that is already hot, so it cannot reject heat as effectively.

This is hot-air recirculation, and it is the core problem deflectors are designed to break. By redirecting the discharge upward, the deflector puts the hot air above the intake, where it rises and disperses instead of being re-inhaled. The unit gets to breathe cooler ambient air, which is exactly what it needs to run efficiently.

Importantly, a good deflector redirects the air, it does not block or choke it. Restricting the airflow would cause its own problems. The aim is to change where the air goes, not to stop it moving.

What problems does an air deflector solve?

Air deflectors tackle a whole family of related problems that all come back to the same root cause: hot exhaust air going where it should not. Each of these has a full guide of its own, linked below, but here is the overview.

Hot-air recirculation and tight clearances

This is the big one. An obstruction (a fence or wall) within about 1.5m of the outdoor unit can reduce performance by up to about 50% through hot-air recirculation. Many units are installed down the side of the house in exactly this kind of narrow gap. A deflector lifts the exhaust up and out of that tight corridor so the unit is not constantly re-breathing its own heat.

Lost performance and higher running costs

When a unit re-inhales hot air, it has to work harder to reject the same amount of heat. That shows up as reduced cooling capacity and higher power bills. The physics is consistent: poor airflow across the condenser coil drives up head pressure and temperature, which reduces cooling capacity, increases running cost and shortens compressor life. Restoring clean airflow to the unit protects both your comfort and your power bill.

Scorched plants and gardens

The hot, dry exhaust can dehydrate and burn plants sitting in its path. Redirecting the airstream upward lifts the heat up and over the garden bed so your plants stop copping the blast.

Unusable balconies and alfresco areas

On balconies, courtyards and entertaining areas, the fan often points straight at your seating. A deflector sends the hot air up and away so you can actually use the space when the air con is running.

Overheating in heatwaves

When ambient temperatures climb, an already-restricted unit has even less headroom and is more likely to overheat or trip out. Giving it clean intake air helps it cope when conditions are toughest.

Do air deflectors actually work? The evidence

Yes, when the unit is restricted or pointed at an obstruction, a deflector addresses a real, documented problem. The evidence is rooted in well-established HVAC physics rather than marketing.

The supporting facts:

  • Recirculation is real and measurable. HVAC engineers actively design to separate condenser intake and discharge air precisely to avoid recirculation, because mixing the two cuts performance. Putting the discharge above the intake so the buoyant hot air rises above the intake is a recognised way to prevent recirculation problems.
  • Restricted condenser airflow has a known performance cost. One commonly cited rule of thumb: at roughly a 30% reduction in condenser airflow a system drops to about 94% of capacity, and at a 50% reduction it drops to about 86% (correct at time of publication). Anything that restores clean airflow works against those losses.
  • Clearance guidance exists for the same reason. Manufacturers and HVAC bodies specify minimum clearances around outdoor units to prevent restricted airflow and recirculation. A deflector is a way to mitigate the problem when you cannot achieve that clearance by moving the unit.

A sensible, honest summary: a deflector will not magically improve a unit that already sits in a wide-open, well-ventilated spot. But for the very common situation where a unit is wedged into a tight gap, facing a fence, or dumping heat across a living area, redirecting the exhaust addresses a genuine cause of lost performance.

Who needs an air deflector?

You are a strong candidate for a deflector if any of the following describe your setup. If your unit sits in the open with metres of clear space all around, you probably do not need one.

You likely need a deflector if... You probably do not if...
The unit faces a fence or wall within about 1.5m The unit has metres of open space in front
It is installed down a narrow side passage It is in an open backyard
Hot air blows across a balcony or alfresco area Nobody uses the area near the unit
Plants near the unit are scorched or wilting There is no greenery in the airstream
The unit struggles or trips out in heatwaves The unit copes fine in extreme heat
You rent and cannot relocate the unit You can freely reposition the unit

What to look for when buying an air deflector

Not all deflectors are equal. A few things make a real difference to how well it works and how easy it is to live with.

  • No-drill attachment. Magnetic deflectors fit without holes, which protects the unit and the building and suits renters. Screw-fixed types are permanent and can compromise the unit's casing.
  • Correct angle. A 45 degree redirect is the sweet spot for lifting hot air up and clear without choking the airflow.
  • Right size for your unit. A deflector that is too small will not cover the airstream properly. Look for a range of sizes, and remember twin-fan units need a deflector for each fan.
  • Durable, weatherproof material. It lives outside year-round, so it needs to handle sun, rain and heat without degrading.
  • Removable for servicing. Your technician will need access to the unit. A deflector that lifts off easily makes maintenance painless.
  • Made for local conditions. Australian-made products are built for Australian heat and are easy to support and replace.

The Aussie Air Bender: the Australian-made option

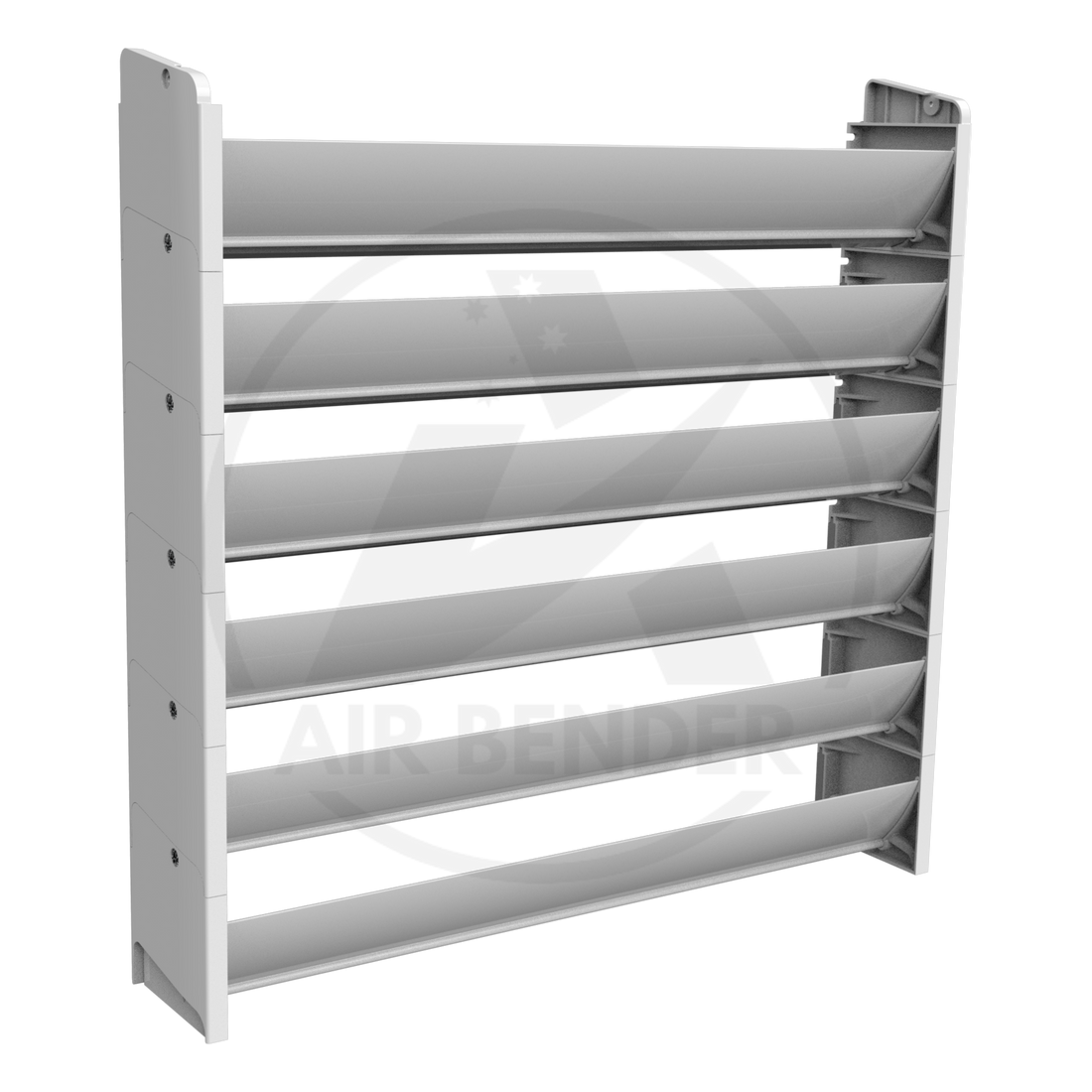

The Aussie Air Bender is a patented (Patent 2024333298), Australian-made magnetic air deflector designed and manufactured in Adelaide, South Australia. It is purpose-built to tick every box above.

It attaches magnetically to the metal outdoor unit, so there is no drilling and no tools required. Installation is genuinely DIY, taking minutes, and it lifts straight off again whenever the unit needs servicing or you want to reuse it elsewhere. It redirects the hot discharge air upward or sideways at 45 degrees, the optimal angle for clearing fences, walls, plants, balconies and entertaining areas without restricting airflow.

It comes in four sizes (Small, Medium, Large and XL) to match different units, and twin-fan units simply use two deflectors. Because it is removable and reusable, it suits both homeowners and renters, and it travels with you if you move.

In short, if your outdoor unit is boxed in, facing an obstruction, or making a space unpleasant to use, the Aussie Air Bender is the no-drill, Australian-made way to redirect that hot air where it belongs.

Frequently asked questions

What does an air conditioner air deflector do?

It attaches to the outdoor unit and redirects the hot exhaust air, usually upward or sideways at about 45 degrees, so it clears nearby fences, walls, plants and seating areas instead of blowing straight into them or recirculating back to the unit.

Do air deflectors actually improve performance?

When the unit is restricted or facing an obstruction, yes. Redirecting the exhaust upward reduces hot-air recirculation, which is a documented cause of lost cooling capacity and higher running costs. On a unit already sitting in open, well-ventilated space, a deflector offers little extra benefit.

Will a deflector restrict my air conditioner's airflow?

A well-designed deflector redirects the airstream rather than blocking it. It changes where the air goes, not how much moves, so it avoids the airflow restriction that causes problems.

What size air deflector do I need?

Match the deflector to your unit's size, which is why quality ranges come in multiple sizes (Small to XL). Twin-fan outdoor units need two deflectors, one for each fan.

Are magnetic deflectors safe for my unit and for renters?

Yes. Magnetic deflectors attach without drilling, so they do not modify or damage the unit or building, and they lift off cleanly. That makes them well suited to renters and to apartments where permanent changes are not allowed.
